Customized 19000W CW Fiber Laser High Efficiency For Power Generation

Product Details

Place of Origin: China

Brand Name: GZ photonics

Certification: CE,FCC

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Packaging Details: wooden box

Payment Terms: T/T

Get Best Price

Product Details

Product Description

Highlight:
                                                19000W CW Fiber Laser, Customized CW Fiber Laser, High Efficiency Continuous Wave Laser

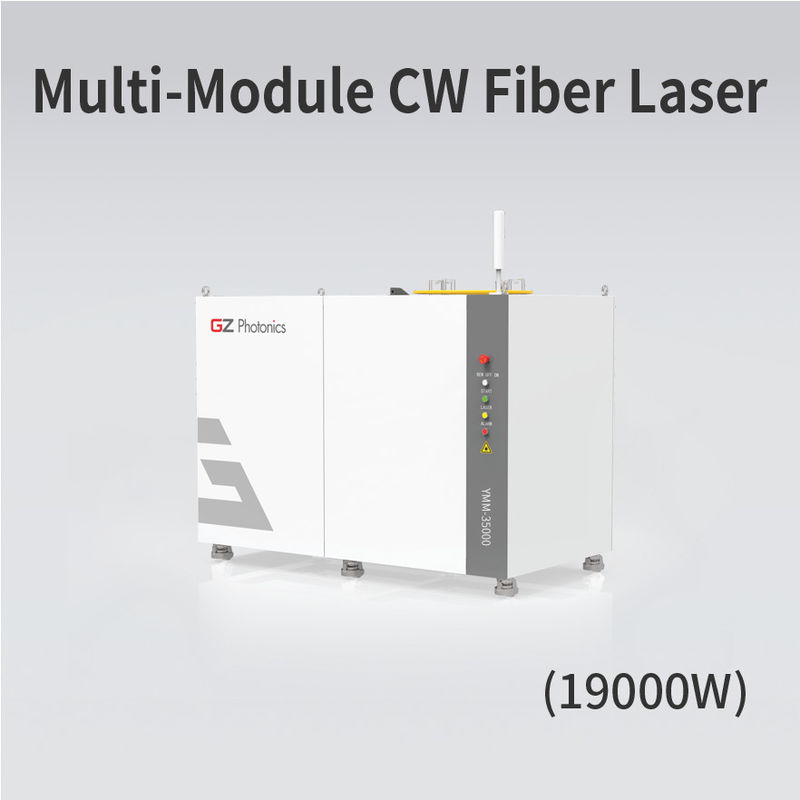

Customized 19000W CW Fiber Laser High Efficiency For Power Generation

Multi-Module CW Fiber Laser(19000W) is a multi-module continuous fiber laser developed by GZ Photonics which breaks through the limit of processing thick plates of over 100mm and makes the processing of iron ingots and steel ingots possible, and has the power to completely replace the traditional processing of thick plates such as fire, equipotential sub and sawing machine, etc. YMM is mainly used in the fields of nuclear industry, process machinery, power generation, shipbuilding, mining equipment, etc. Multi-Module CW Fiber Laser(19000W) product has the advantage of high beam quality and stability.

Model		YMM-19000
Basic Parameters
Average Power (CW)		19000
Central Wavelength (nm)		1080±1
Operating Mode		CW/Modulated
Polarization State		Random
Modulation Frequency (kHz)		0-10
Power -Tuanability (%)		10-100
Power Instability (%)		±2
Red Light (uW)		>200
Optical Output Characteristics
Beam Quality BPP (mmXmrad)	50μm	≤2
	100μm	≤4
	200μm	≤8
Diameter of Fiber Core (μm)		50/100/200(Customizable)
Delivery Cable Length (m)		15-20(Customizable)
The Minimum Bending Radius OfOptical Cable (mm)		200
Output Connector		QBH,QD(Customizable)
Electrical Properties
InputPowerSupply		340-420vac,50/60hz
		Three-Phase Five-Wire
RatedPowerConsumption		40000
Control Mode		RS-232/Ethemet
		Analog Control 0-10v
Other Features
Cooling		Water Cooling
OperatingAmbient Temperature(°C)		10-40
Relative Humidity (%)		<85
Dimensions (W×D×H,mm)		10069181356
Weight (kg)		500
