Infrared 40W Pico Second Laser With Oned Modular Unit Combination Design

Product Details

Place of Origin: China

Brand Name: GZ photonics

Certification: CE,FCC

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Packaging Details: wooden box

Payment Terms: T/T

Get Best Price

Product Details

Product Description

Highlight:
                                                Infrared Pico Second Laser, 40W Pico Second Laser, Infrared Picosecond Pulsed Laser

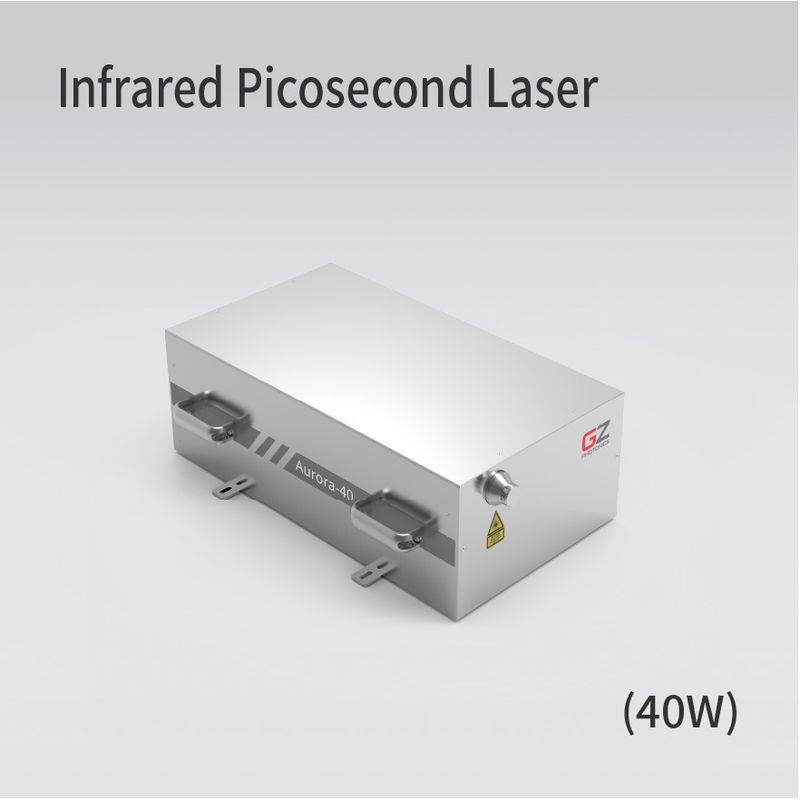

Infrared 40W Pico Second Laser With Oned Modular Unit Combination Design

Infrared Picosecond Laser(40W) is used in precision processing applications such as silicate glass cutting, high-borosilicate glass tube cutting, high-transmission brittle material engraving, and metal microporation, etc. The unique zoned modular unit combination design and the stable and simple OEM system integration design provide the whole system with good temperature adaptability and simple operation, and the fully-enclosed design supports the use of the lasers in a variety of environments. The fully sealed design supports the use of the laser in a variety of environments and is especially suitable for the industrial fine processing field.

Parameters	Unit	Aurora Series -Infrared Pulse Laser
Output Wavelength	nm	1064
Maximum OutputPower	W	40w@100khz@2burst
Pulse Frequency	kHz	50-3000
Pulse Width	ps	10
Maximum Single Pulse Energy	uJ	500
Maximum Burst Energy	uJ	1000
Spot Ellipticity	%	≥90
Power Instability	mms,%	<1
Spot Diameter	mm	<2
Beam Divergence Angle	mrad	<1
Beam Quality	M ²	<1.3
Power Adjustment	%	0-100
Supply Voltage	AC	220
Operating Temperature	℃	20-30
Storage Temperature	℃	0-50
Cooling	Water Cooling	25±1℃
Dimensions	WxDxH(mm)	635380195
Weight	kg	50
