30W Fiber Laser Oscillator Energy Saving With Saturable Absorber Technology

Product Details

Place of Origin: China

Brand Name: GZ photonics

Certification: CE,FCC

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Packaging Details: wooden box

Payment Terms: T/T

Get Best Price

Product Details

Product Description

Highlight:
                                                30W Fiber Laser Oscillator, Energy Saving Fiber Laser Oscillator, Saturable Absorber High Power Oscillator

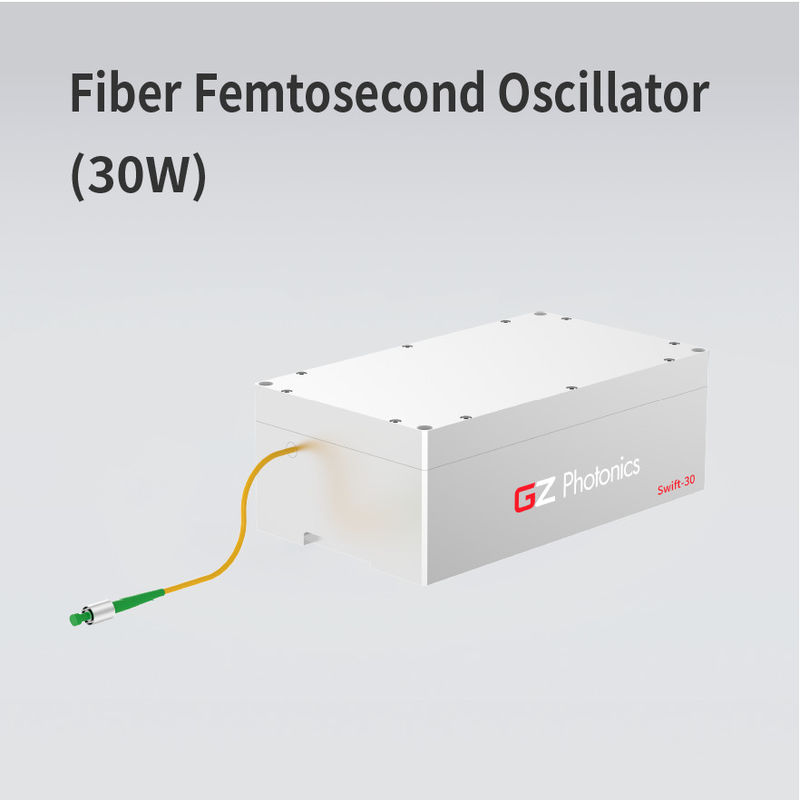

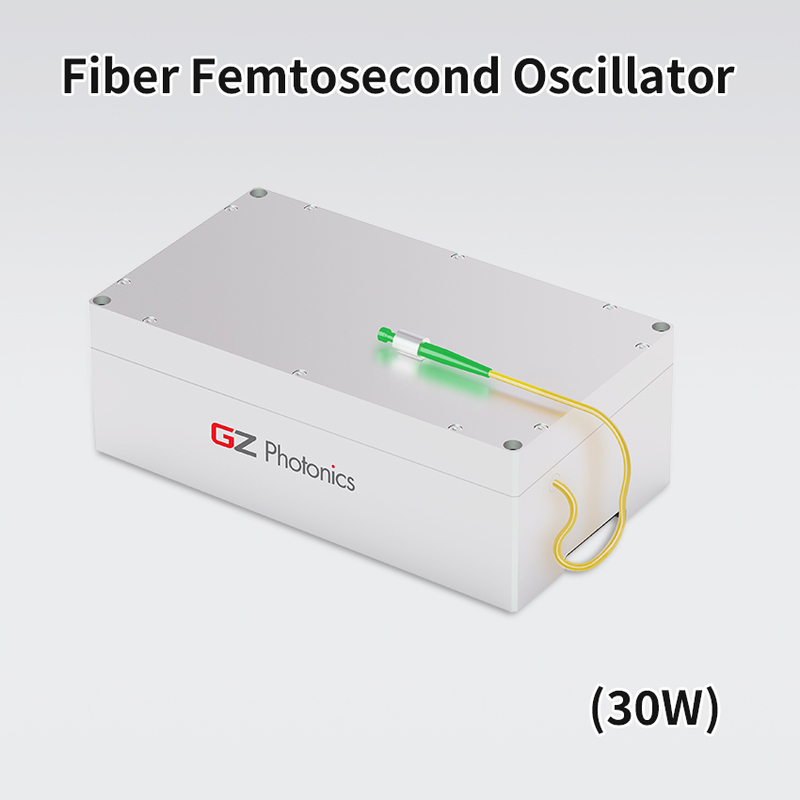

30W Fiber Laser Oscillator Energy Saving With Saturable Absorber Technology

Fiber Femtosecond Oscillator(30W)is specifically designed for industrial femtosecond laser power amplification, using an all-fiber structure based on saturable absorber mode-locking technology, fully automatic mode-locking technology, and ultra-high-precision dispersion management technology, and can be turned on in a single keystroke, and is characterized by their compactness, stability, and longevity, making them ideal for use in 24/7 industrial and scientific applications. The output specifications are highly scalable, and can output optical signals of different wavelengths, powers, and repetition frequencies to satisfy different applications by changing only part of the optical path, and the specific parameters can be customized according to the needs of users.

Parameters	Unit	Swift Series Fiber Femtosecond Oscillator
Output Wavelength	nm	1030-1070
Output Power	mw	100
Repetition Frequency	Mhz	80
Pulse Width	fs	500
Pulse Energy	nJ	120
Output Mode	/	APC Connector
Beam Quality	M ²	≤1.1
Spot Ellipticity	%	≥90
Spot Diameter	mm	≤1.2
Divergence Angle	mrad	<1
Power Instability	rms,%	<5%
RMS	/	<1.5%
Supply Voltage	dc	24V
Cooling	/	Air Cooling
Operating Temperature	℃	15-35
Size	W×D×H(mm)	22517080
Weight	kg	3
