120W Electric Control 532 Nm Pulsed Laser Industrial For Thick Glass Cutting

Product Details

Place of Origin: China

Brand Name: GZ photonics

Certification: CE,FCC

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Packaging Details: wooden box

Payment Terms: T/T

Get Best Price

Product Details

Product Description

Highlight:
                                                120W 532 Nm Pulsed Laser, Electric Control 532 Nm Pulsed Laser, Thick Glass Cutting Picosecond Pulsed Laser

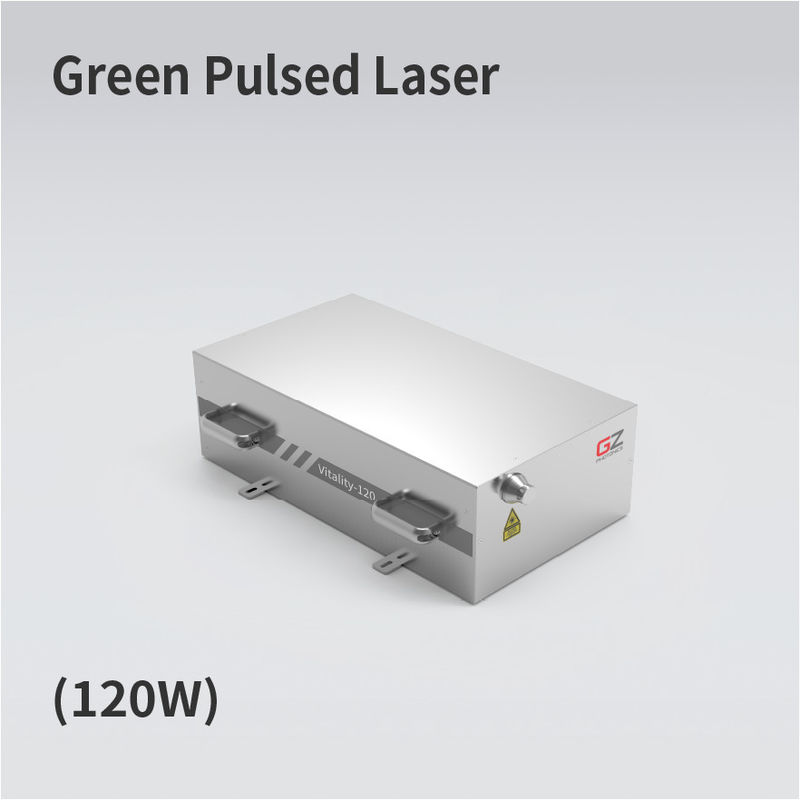

120W Electric Control 532 Nm Pulsed Laser Industrial For Thick Glass Cutting

Green Pulsed Laser(120W) is used in the fields of PI film windowing in flexible circuit boards, thick glass cutting and engraving, precision electronic component processing, and photovoltaic solar cell processing, etc. Green Pulsed Laser is designed with a highly stable and reliable fiber femtosecond oscillator and solid-state amplification technology. The control software matches various industrial working conditions and can switch various working modes in one click. The green light is an ideal light source between infrared and ultraviolet lasers because of its excellent beam quality and minimal thermal effect.

Parameters	Unit	VitalitySeries-GreenPicosecondLaser
Output Wavelength	nm	532	532
Max. Output Power	W	30W@500kHz	200W@1000kHz
Pulse Frequency	kHz	500-3000	1000-3000
Pulse Width	ps	10	10
Polarization State	/	Horizontal	Horizontal
Number Of Pulse Trains	/	1-9 Optional	1-9 Optional
Max. Single Pulse Energy	W	60	200
Spot Ellipticity	%	≥90	≥90
Power Instability	RMS (%)	<1.5	<3
Spot Diameter	mm	<2	<3
Beam Divergence Angle	mrad	<1	<1
Beam Quality	M²	<1.3	<1.3
Power Adjustment	%	0-100	0-100
Supply Voltage	AC	220	220
OperatingTemperature	℃	20-30	20-30
StorageTemperature	℃	0-50	0-50
Cooling Method	Water Cooling	25±1℃	25±1℃
Dimensions	WDH (mm)	635380195	735480195
Weight	kg	50	70
