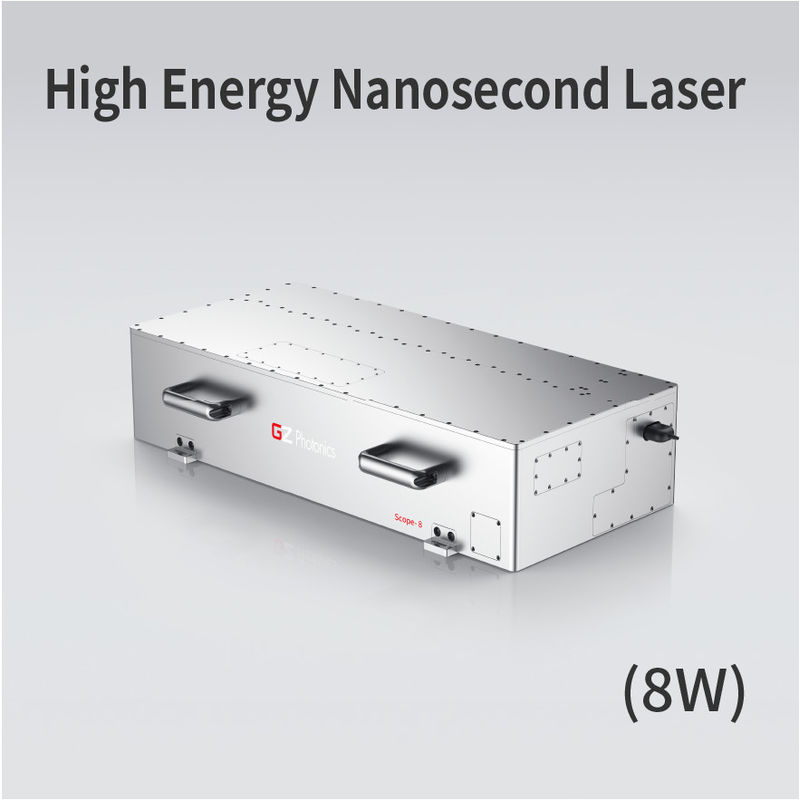

8W High Energy Nanosecond Laser Energy Efficiency With Water Cooling
8W High Energy Nanosecond Laser Energy Efficiency With Water Cooling

8W High Energy Nanosecond Laser Energy Efficiency With Water Cooling

Product Details

Place of Origin: China

Brand Name: GZ photonics

Certification: CE,FCC

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Packaging Details: wooden box

Payment Terms: T/T

Get Best Price

Product Details

Product Description
Highlight:

8W High Energy Nanosecond Laser

,

Energy Efficiency High Energy Nanosecond Laser

,

Water Cooling Nano Second Laser

8W High Energy Nanosecond Laser Energy Efficiency With Water Cooling

High Energy Nanosecond Laser(8W) is characterized by good beam directivity, high reliability, compact size, easy integration, stable operation, and ease of use. With energies ranging from 50 mJ to 2,000 mJ, they are suitable for a wide variety of applications, especially in the fields of laser LIBS, laser cleaning, and pumped OPO.





Parameters Unit Scope Series-High Energy Nanosecond Laser
Repetition Frequency hz / 10 20 30 50
Energy mJ 1064nm 2000 2000 2000 1500
532nm 1000 1000 1000 750
355nm 500 400 400 300
266nm 180 100 90 50
1064nm <1
Energy Stability RMS (%) 532nm <2
355nm <4
266nm <4
Pulse Width ns 1064nm:10-20ns;OtherWavelengths:7-10ns
Spot Shape 1 Near Field >70%
Far Field >90%
Spot Diameter mm 12
Divergence Angle mrad ≤1
Pointing Stability mrad <50
Dimensions W*D*H (mm) 800*400*200
Power Supply VAC,Hz 220-16,50
OperatingTemperature ℃ 15-30
