70W Quasi CW Laser Water Cooed For High Photoelectric Conversion Efficiency

Product Details

Place of Origin: China

Brand Name: GZ photonics

Certification: CE,FCC

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Packaging Details: wooden box

Payment Terms: T/T

Get Best Price

Product Details

Product Description

Highlight:
                                                70W Quasi CW Laser, Water Cooed Quasi CW Laser, Water Cooed Quasi CW Laser

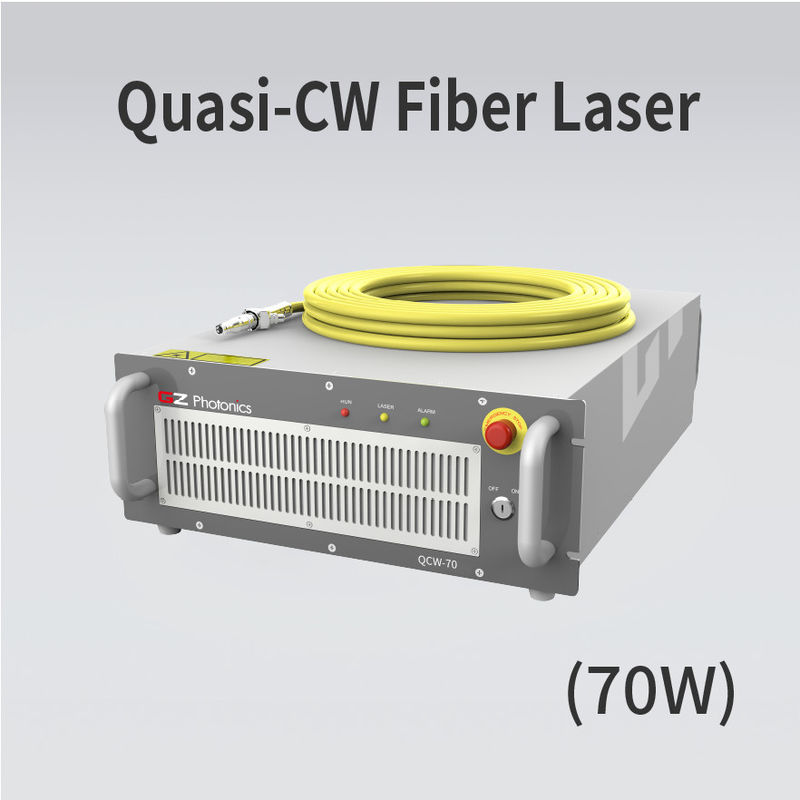

70W Quasi CW Laser Water Cooed For High Photoelectric Conversion Efficiency

Quasi-CW Fiber Laser(70W)is widely used in the 3C electronics, power battery, and medical industries, especially for precision machining of high-contrast materials such as copper, silver, and nickel, and can be customized to meet customer needs, featuring high photoelectric conversion efficiency, high beam quality, and low maintenance costs.

Model	QCW-70
BasicParameters
Average Power (CW)	250
Average Power (w) Pulse	70
Maximum Peak Power (w)	1500
Maximum Pulse Energy (J)	15
Central Wavelength (nm)	1080±3nm
Operation Mode	Pulse/Cw/Modulated
Polarization	Random
Modulation Frequency (kHz)	0-10
Power Adjustment (%)	10-100
Power Stability (%)	±2
Red Light (uW)	>200
Optical Output Characteristics
Beam Quality (BPP,mmXmrad)	≤0.4	≤2	≤4
Diameter of Fiber Core (μm)	14	50	100
Delivery Cable Length (m)	5,10 (Customizable)
Minimum Bending Radius Of Optical Cable (mm)	200
Output Connector	QBH
ElectricalProperties
InputPower Supply	200-240vac,50/60hz, Single Phase
Rated Power Consumption(w)	2000
Control Mode	RS-232/Ethernet
	Analog Control 0-10v
OtherFeatures
Cooling	Air Cooling
Operating Ambient Temperature (°C)	5-35
Relative Humidity (%)	<85
Size (WxDxH, mm)	482.6711192
Weight (kg)	45
