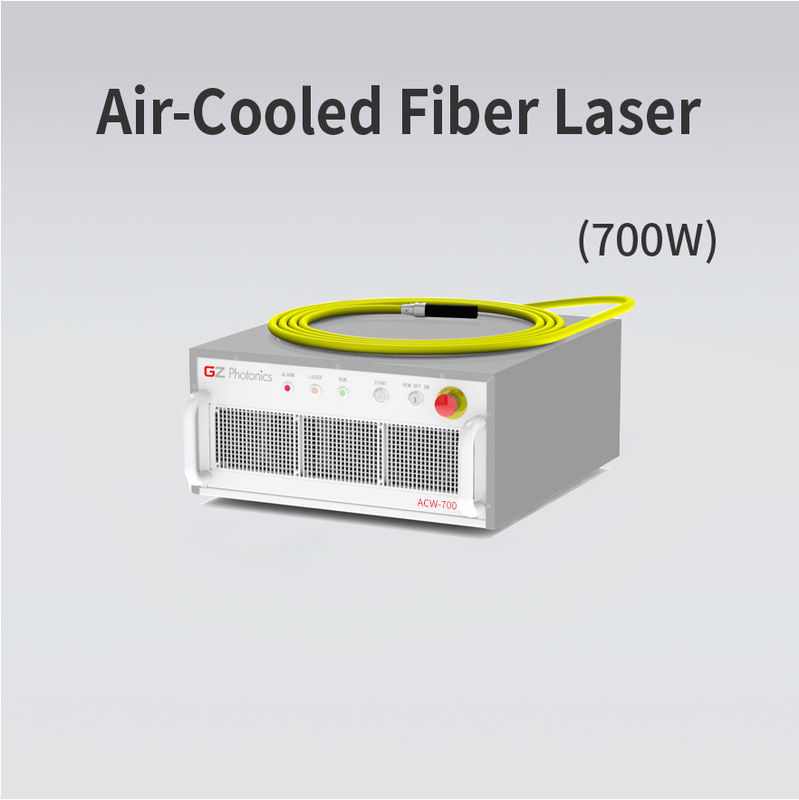

700W Portable Fiber Laser High Precision With Low Energy Consumption

Product Details

Place of Origin: China

Brand Name: GZ photonics

Certification: CE,FCC

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Packaging Details: wooden box

Payment Terms: T/T

Get Best Price

Product Details

Product Description

Highlight:
                                                700W Portable Fiber Laser, High Precision Portable Fiber Laser, Low Energy Consumption Fiber Laser Source


700W Portable Fiber Laser High Precision With Low Energy Consumption

Air-Cooled Fiber Laser(700W), with a stable fiber power output of 500-750W, are used in metal and non-metal precision cutting, precision welding, and cleaning applications. The compact design of this series of lasers offers the advantages of good sealing, high system integration, small size, low energy consumption, and ease of use and reliability.

Model	ACW-700
Basic Parameters
Average Power (W)	700
Central Wavelength (nm)	1080±1
Operation Mode	CW/Modulated
Polarization State	Random
Modulation Frequency (kHz)	0-50 (125kHz Customizable)
Power Tunability (%)	10-100
Power Stability (%)	±2
Red Light (uw)	>200
Optical Output Characteristics
Beam Quality (BPP,mmXmrad)	≤4
Diameter of Fiber Core (μm)	100
Delivery Cable Length (m)	5, 10 (Customizable)
Output Connector	QBH
Electrical Properties
Minimum Bending Radius Of Optical Cable (mm)	200(Customizable)
Power supply	200-240vac,50/60hz,Single Phase
Max.Power Consumption(W)	3000
Control Mode	Rs-232/Ethernet
Control Mode	Analog Control 0-10v
Other Features
Cooling Method	Air Cooling
Operating Ambient Temperature (°C)	5-35
Relative Humidity (%)	<85
Dimensions (WDH, mm)	570447.5218.5
Weight (kg)	50
