600W Water Cooled Green QCW Fiber Laser High Power And Convenient Operation

Product Details

Place of Origin: China

Brand Name: GZ photonics

Certification: CE,FCC

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Packaging Details: wooden box

Payment Terms: T/T

Get Best Price

Product Details

Product Description

Highlight:
                                                600W QCW Fiber Laser, Green QCW Fiber Laser, High Power Quasi CW Laser

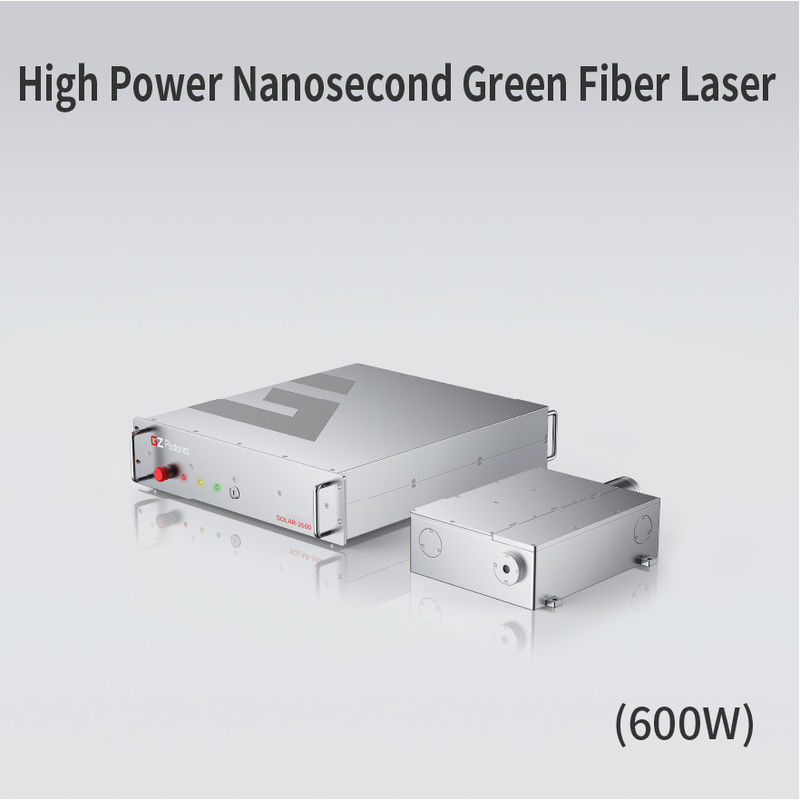

600W Water Cooled Green QCW Fiber Laser High Power And Convenient Operation

High Power Nanosecond Green Fiber Laser (600W) adopts all-fiber fundamental frequency plus extra-cavity frequency doubling design, provides flexible transmission method coupled to fiber, and more intelligently matches the automation design, which is widely used in solar energy and photovoltaic material processing, high-reverberation metal welding and cutting, FPC overlay film cutting, glass-based ink removing and marking, PVD removing and other fields.

Parameters	Unit	Solar Series-High Power Nanosecond Green Fiber Laser
Max. Average Power	W	600
CentralWavelength	nm	532±1
Operation Mode	/	Quasi-CW Fiber (QCW)
Polarization State	/	Linear Polarization
ModulationFrequency	MHz	125
Power Adjustment	%	10-100
Power Instability	%	±2
Ovality	%	>90
Extinction Ratio	dB	>15
Beam Quality	M²	<1.2
Fiber Core Diameter	μm	50 (Customizable)
Optical CableLength	m	10 (Customizable)
MinimumBendingRadiusOfOptical Cable	mm	200
Output Connector	/	QBH (Customizable)
Power Supply	AVC	200-240VAC, 50/60Hz, Single Phase
Max.Power Consumption	W	3200
Control Mode	/	RS-232
Control Mode	/	Parallel lo/AnalogControl 0-10v
Cooling Method	/	WaterCooling
Operating Ambient Temperature	℃	10-40
StorageEnvironmentTemperature	℃	0-60
BaseFrequency Module Size	LWH (mm)	514483113
Weight OfBaseFrequency Module	kg	25
FrequencyMultiplicationModuleSize	LWH (mm)	37526493.5
WeightOfFrequency MultiplicationModule	kg	15
