Portable Mopa Fiber Laser Source Continuous 500w Fiber Laser with Low Noise

Product Details

Place of Origin: China

Brand Name: GZ photonics

Certification: CE,FCC

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Packaging Details: wooden box

Payment Terms: T/T

Get Best Price

Product Details

Product Description

Highlight:
                                                Portable Mopa Fiber Laser Source, Continuous Mopa Fiber Laser Source, Portable 500 Watt Fiber Laser

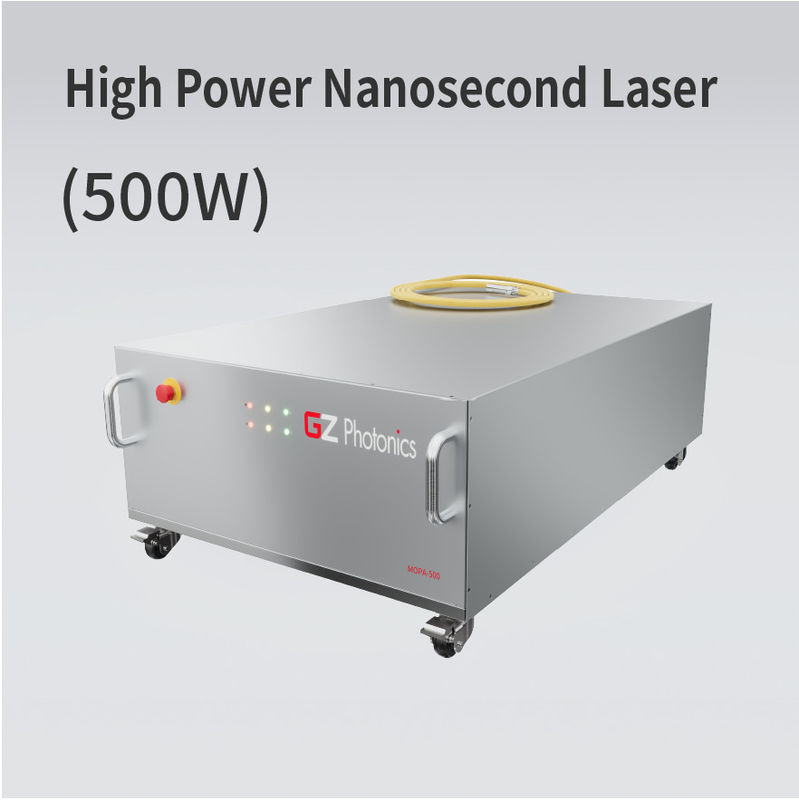

Portable Mopa Fiber Laser Source Continuous 500w Fiber Laser with Low Noise

High Power Nanosecond Laser (500W) independently developed by GZ Photonics has good pulse shape control ability and perfect optical characteristics. It has high pulse energy, uniform distribution of output spot energy, no fear of high reflection, and fast switching light response
It is an ideal and efficient laser cleaning light source.

Parameters	Unit	MOPA Series-High Power Nanosecond Laser
Average Power	W	500
Central Wavelength	nm	1064±5
Operating Mode	/	Pulse
Polarization State	/	Random
Pulse Width	ns	20-500
SinglePulse Energy	mJ	10-25
Repetition Frequency	kHz	10-500
Power Adjustable	%	10-100
Power Unstability	%	±5
Red Light	μw	>200
Output Fiber Core Diameter	μm	300 (Customizable)
Output Optical Cable Length	m	10(Customizable)
Minimum Bending Radius Of Optical Cable	mm	200
Output Connector	/	QBH(Customizable)
Power Supply	/	AC220V(200-240VAC),50/60Hz,SinglePhase
Max.Power Consumption	W	2000
Software	/	Upper Computer Control
Cooling Method	/	WaterCooling
Refrigerating Capacity	W	3000
Operating Ambient Temperature	℃	10-40
Relative Humidity	%	<85
Dimensions	LWH (mm)	1000600150
Weight	kg	30
