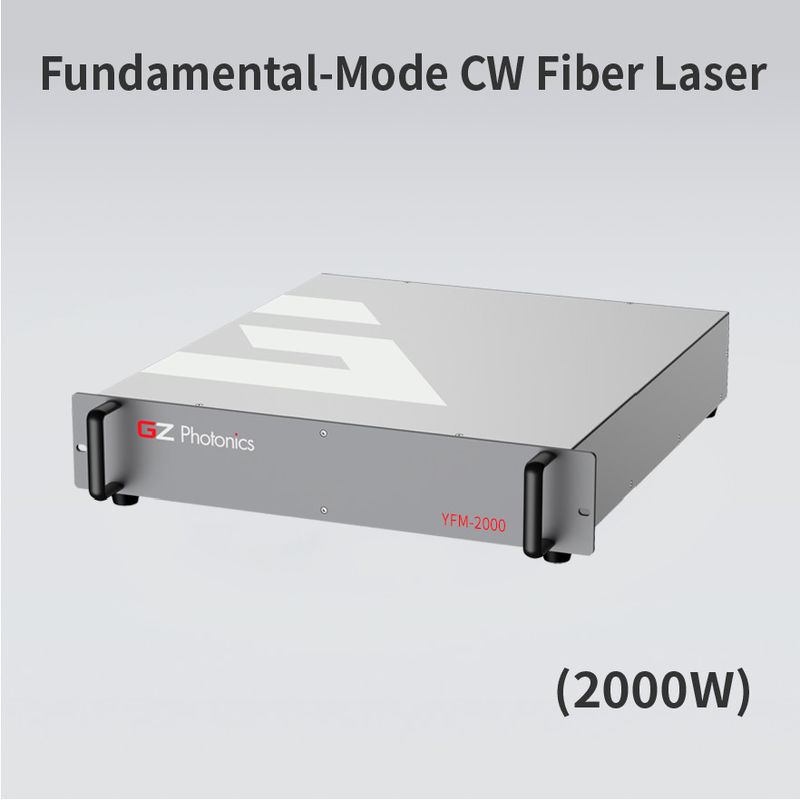

Fundamental Mode 2000 Watt Fiber Laser Portable For Precision Cutting

Product Details

Place of Origin: China

Brand Name: GZ photonics

Certification: CE,FCC

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Packaging Details: wooden box

Payment Terms: T/T

Get Best Price

Product Details

Product Description

Highlight:
                                                Portable 2000 Watt Fiber Laser, Precision Cutting 2000 Watt Fiber Laser, Precision Cutting 2000w Fiber Laser


Fundamental Mode 2000 Watt Fiber Laser Portable For Precision Cutting

14μm Fundamental-Mode CW Fiber Laser(2000W), adopting the core components designed andunique optical path structure design, realizes 100W~3000W fiber laser single mode output. It is applied to high reflectivity materials such as copper, aluminum and other high-preci sion welding of dissimilar materials, etc. It has excellent beam quality and strong anti-return ability, and has significant advantages in precision cutting and welding.

Model	YSM-2000
Basic Parameters
Average Power (W)	2000
Polarization State	Random
Power Tunability (%)	10-100
Power Stability(%)	±0.5@500W
Central Wavelength (nm)	1080±1
Power Unstability (%)	±2
Modulation Frequency (kHz)	0-50(125kHz Customizable)
OpticalOutputCharacteristics
Beam Quality (BPP, mmXmrad)	≤0.4	≤2	≤4
DiameterOf Fiber Core(μm)	14	50	100
Delivery Cable Length (m)	0-5	0-20	0-20(Customizable)
OperatingMode	CW/Modulated
Electrical Properties
PowerSupply	200-240VAC,50/60Hz
	Single-Phase Three-Wire
Max.Power Consumption (W)	4800
Control Mode	Analog 0-10V (Extemal Control Mode)RS-232/Ethermet Tcp/lp (Internal Control Mode)
Red Light (μW)	>200
OtherFeatures
OperatingAmbientTemperature(°C)	10-40
Relative Humidity (%)	<85
Cooling Method	WaterCooling
Dimensions (WDH, mm)	482.6576103
Weight (kg)	≤20
