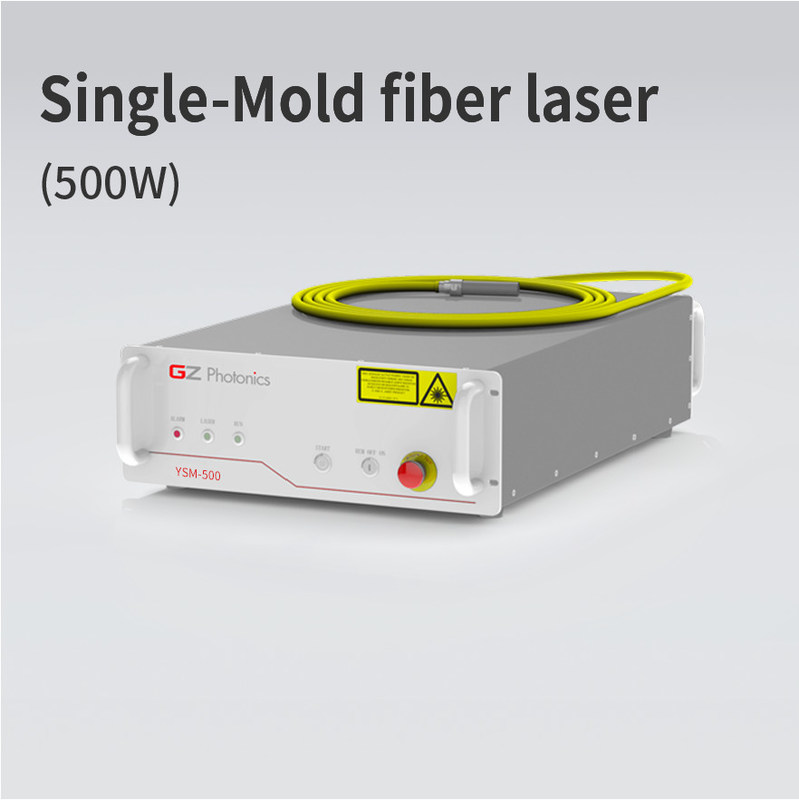

500W Continuous Wave Fiber Laser High Efficiency For Metal Applications

Product Details

Place of Origin: China

Brand Name: GZ photonics

Certification: CE,FCC

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Packaging Details: wooden box

Payment Terms: T/T

Get Best Price

Product Details

Product Description

Highlight:
                                                500W Continuous Wave Fiber Laser, High Efficiency Continuous Wave Fiber Laser, Metal Applications 500 Watt Fiber Laser


500W Continuous Wave Fiber Laser High Efficiency For Metal Applications

Single-Mold fiber laser (500W) series products are single-module CW fiber lasers, which have obvious advantages in the fields of thin plate cutting and anti-high reflective material cutting. This series of lasers has high laser output quality, good beam quality, and power.Strong stability and other characteristics. The laser integrates the domestic leading welding process waveform setting function, which is simple to operate, good welding process and low cost.

Model	YFM-500
Basic Parameters
Average Power (W)	500
Central Wavelength (nm)	1080±1
Operating Mode	CW/Modulated
Polarization State	Random
Modulation Frequency (kHz)	0-50 (125kHz Customizable)
Power Tunability (%)	10-100
Power Unstability (%)	±2
Red Light (μw)	>200
Optical Output Characteristics
Beam Quality (M²)	≤1.1
Delivery Cable Length (m)	≤15
Minimum Bending Radius Of Optical Cable(mm)	200
Output Connector	QBH (Customizable)
Electrical Properties
Power Supply	200-240VAC, 50/60Hz, Single Phase
Max.Power Consumption (W)	1750
Control Mode	RS-232/Ethermet
Control Mode	Analog Control 0-10V
Other Features
Cooling Method	Water Cooling
OperatingAmbient Temperature(°C)	10-40
Relative Humidity (%)	<85
Dimensions (WDH, mm)	482.6793178
Weight (kg)	30
