Multi Module Continuous Wave CW Laser 45000W For Construction Works

Product Details

Place of Origin: China

Brand Name: GZ photonics

Certification: CE,FCC

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Packaging Details: wooden box

Payment Terms: T/T

Get Best Price

Product Details

Product Description

Highlight:
                                                45000W Continuous Wave CW Laser, Construction Works Continuous Wave CW Laser, 45000W CW Fiber Laser

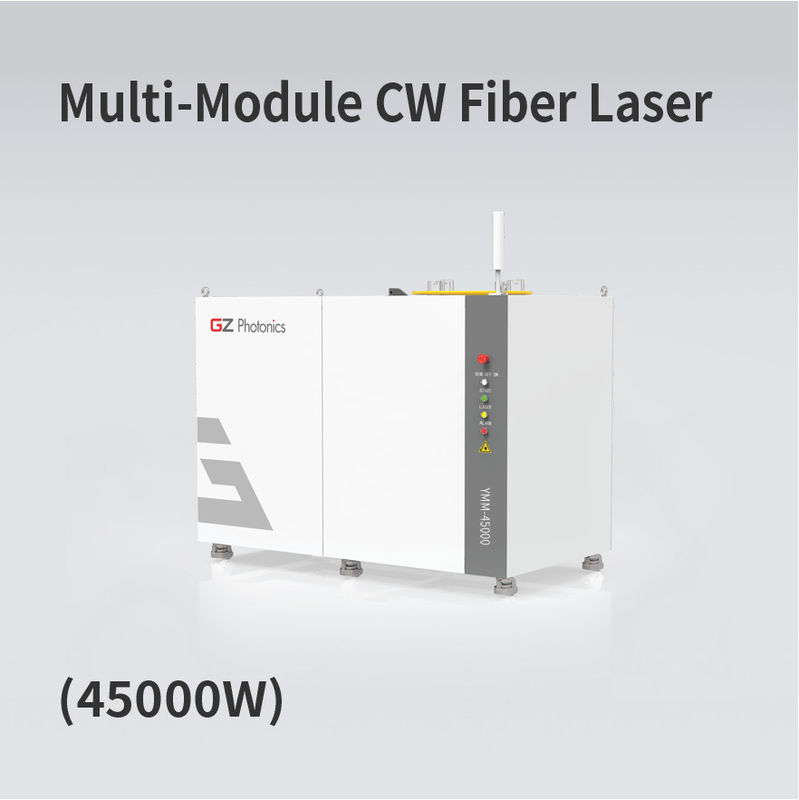

Multi Module Continuous Wave CW Laser 45000W For Construction Works

Multi-Module CW Fiber Laser (45000W) is a multi-module continuous fiber laser developed by GZ Photonics which breaks through the limit of processing thick plates of over 100mm and makes the processing of iron ingots and steel ingots possible, and has the power to completely replace the traditional processing of thick plates such as fire, equipotential sub and sawing machine, etc. Multi-Module CW Fiber Laser is mainly used in the fields of nuclear industry, process machinery, power generation, shipbuilding, mining equipment, etc. Multi-Module CW Fiber Laser product has the advantage of high beam quality and stability.

Model		YMM-45000
BasicParameters
Output Power		45000
Central Wavelength (nm)		1080±1
Operating Mode		CW/Modulated
Polarization State		Random
Modulation Frequency (kHz)		0-10
Power Tunability (%)		10-100
Power Instability (%)		±2
Red Light (uW)		>200
Optical OutputCharacteristics
Beam Quality BPP (mmXmrad)	200μm	≤8
	300μm	≤12
	600μm	≤30
Diameter of Fiber Core (μm)		200/300(Customizable)
Delivery Cable Length (m)		20(Customizable)
The Minimum Bending Radius Of Optical Cable (mm)		200
Output Connector		QD,Q+(Customizable)
Electrical Characteristics
Input Power Supply		340-420vac,50/60hz
		Three-Phase Five-Wire
Rated Power Consumption (W)		240000
ControlMode		RS-232/RS485 Ethernet
		Analog Control 0-10v
OtherFeatures
Cooling		Water Cooling
Operating Ambient Temperature (°C)		10-40
Relative Humidity (%)		<85
Dimensions (W×DxH, mm)		382511661396
Weight (kg)		3500
